Diesel Forklift Truck 7 ton Combustion Forklift For Sale With 83 kw Engine
Product Description of Diesel Forklift Truck 7 ton Combustion Forklift
The features for Diesel Forklift Truck 7 ton Combustion Forklift
Logistics Equipment LG75DTG features: |
| Advanced Ergonomical Design |
| Main Power Disconnercting Device |
| Main Power Disconnercting Device |
| Optimized Hydraulic System |
The main parameter for Diesel Forklift Truck 7 ton Combustion Forklift
| MODEL | LG70DT |
| Power type | Diesel |
| Rated capacity (Kg) | 7500 |
| J Load centre (mm) | 600 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lifting height (mm) | 200 |
| L5*W*T STD Fork size (mm) | 1220×150×60 |
| Mast tilt angle (deg) | |
| L3 Front overhang (mm) | 655 |
| L4 Rear overhang (mm) | 840 |
| Overall dimension | |
| L1 Overall length(mm) | 4965 |
| W1Overall width (mm) | 1995 |
| h2 Mast lowered height (mm) | 2570 |
| h4 Overhead guard height (mm) | 2510 |
| R1 Min.turning radius (mm) | 3415 |
| Min .intersecting aisle (mm) | 3400 |
| Speed(load/unload) | |
| Max.traveling speed (km/h)(F/R) | 24/29 |
| Max,lifting speed (mm/s)(load/unload) | 450/480 |
| Max.gradient (%) | 20 |
| Dead weight (kg) | 10200 |
| S/P Tread(frnt/rear)(mm) | 1470/1500 |
| L2 Axle distance (mm) | 2250 |
| Min.ground clearance | |
| m2 Mast (mm) | 270 |
| m1 Frame (mm) | 305 |
| STD Engine | Xichai CA6110/125G2 |
| Rated power(kw) | 83 |

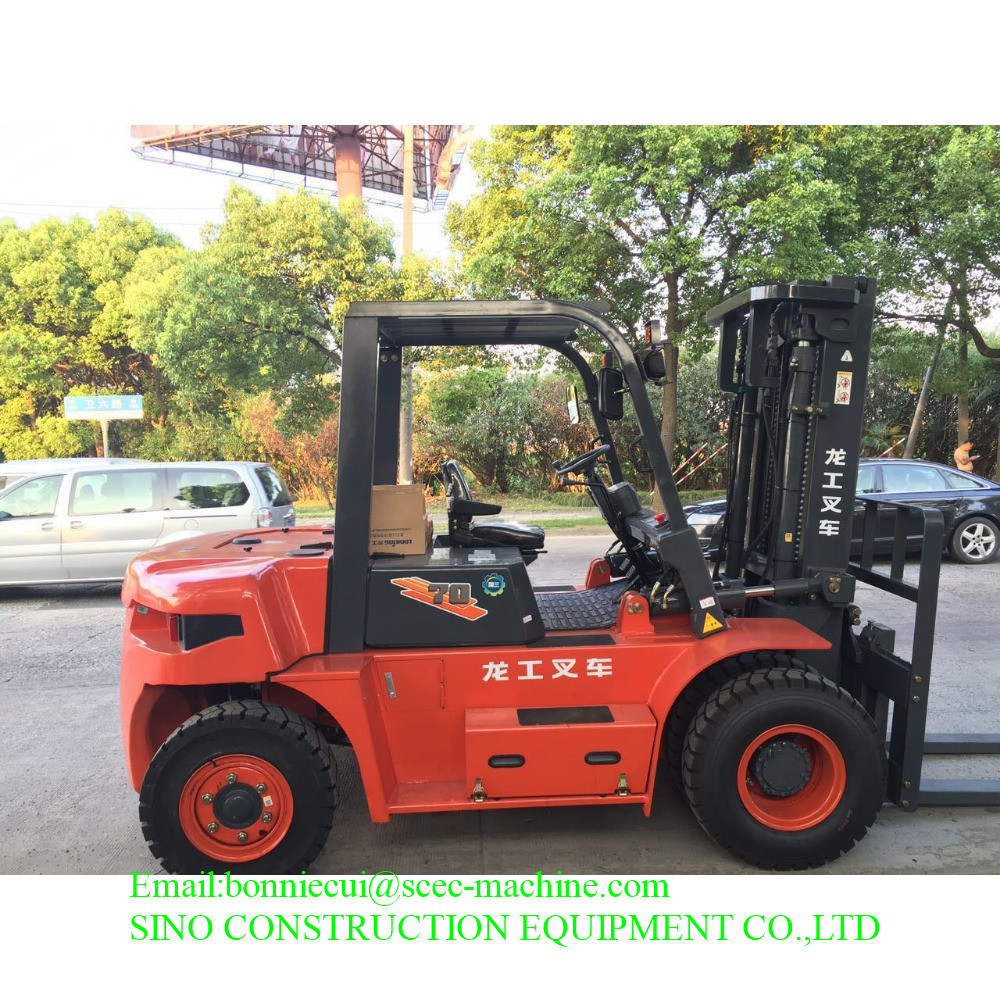

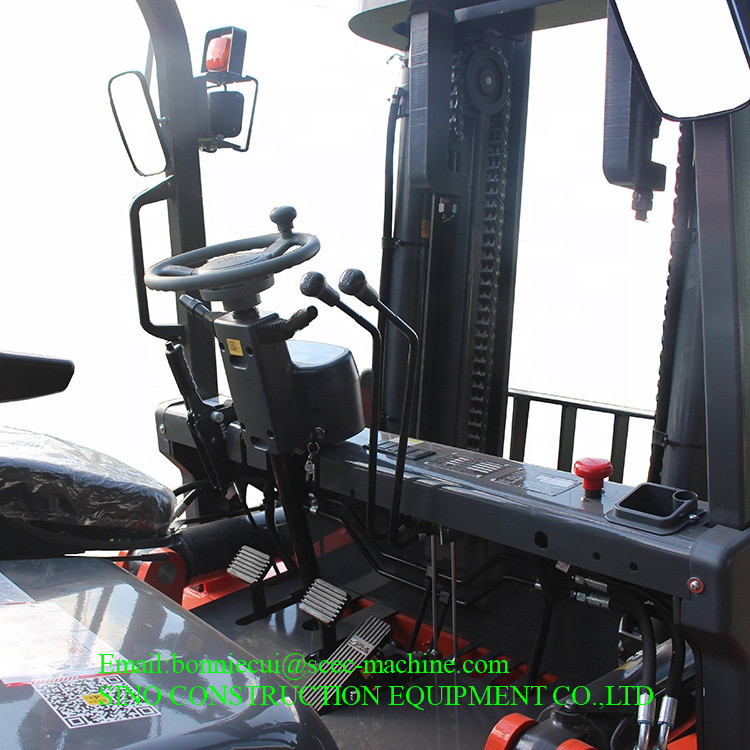

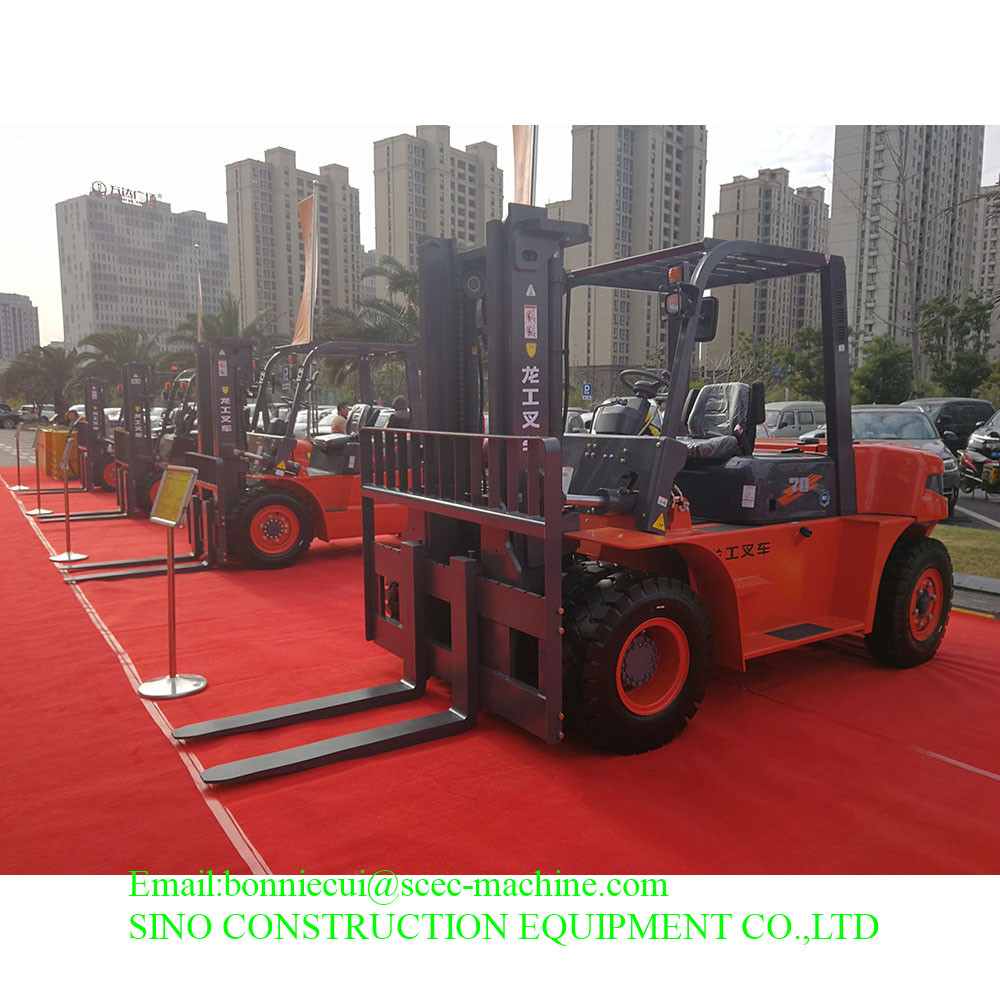

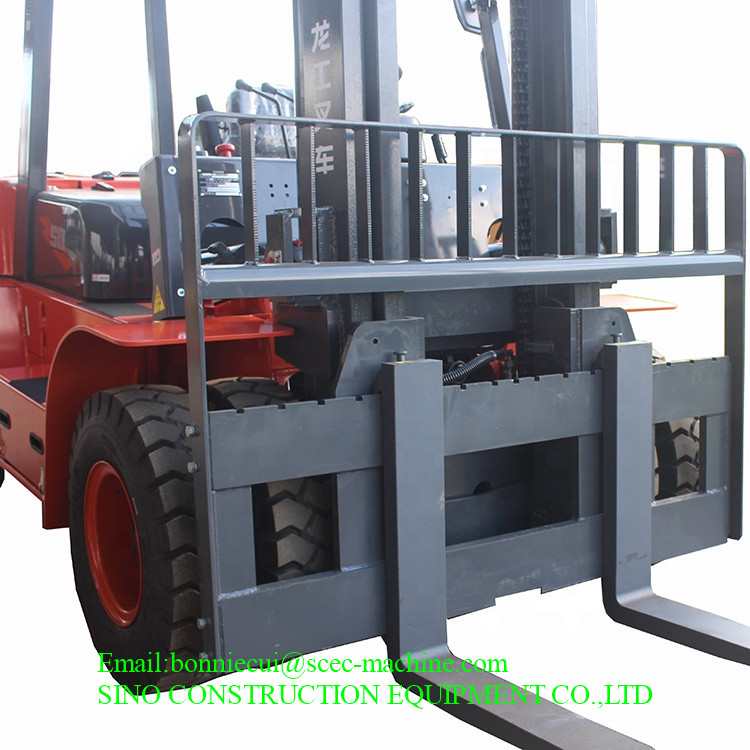

The photo for Diesel Forklift Truck 7 ton Combustion Forklift
Our company profile
Our company was established in 2003 and is located in Jingshi Road, Huaiyin District, Jinan City. The transportation is convenient.
Our business scope includes all kinds of heavy road construction machinery, building machinery, heavy logistics vehicles and special vehicles. Including road rollers, graders, wheel loaders, excavators, etc. And tractor trucks, dump trucks, cargo trucks, semi-trailers, cement mixers and large, medium and small brick machine production lines, etc. Since its establishment 17 years ago, we have won wide acclaim from customers at home and abroad for our high-quality service concept, honest business attitude, and high-quality mechanical products.
At present, we focus on large-scale earthwork, construction engineering projects companies and large-scale logistics centers, with providing customers with high-quality machinery and vehicles.
Jinan is the cradle of Chinese heavy vehicles and machinery. Relying on Jinan's thick heavy equipment technology research and development history and convenient transportation, we maintain good long-term strategic cooperation with Sinotruk and Jiangsu XCMG. Become the vanguard of China's heavy machinery export and overseas market development.

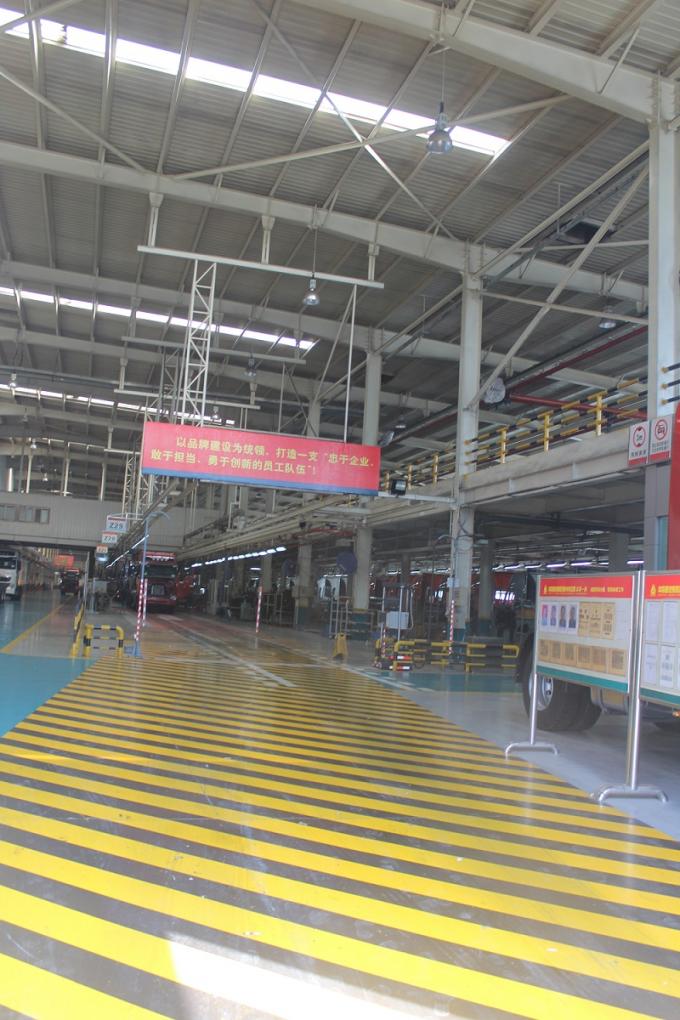

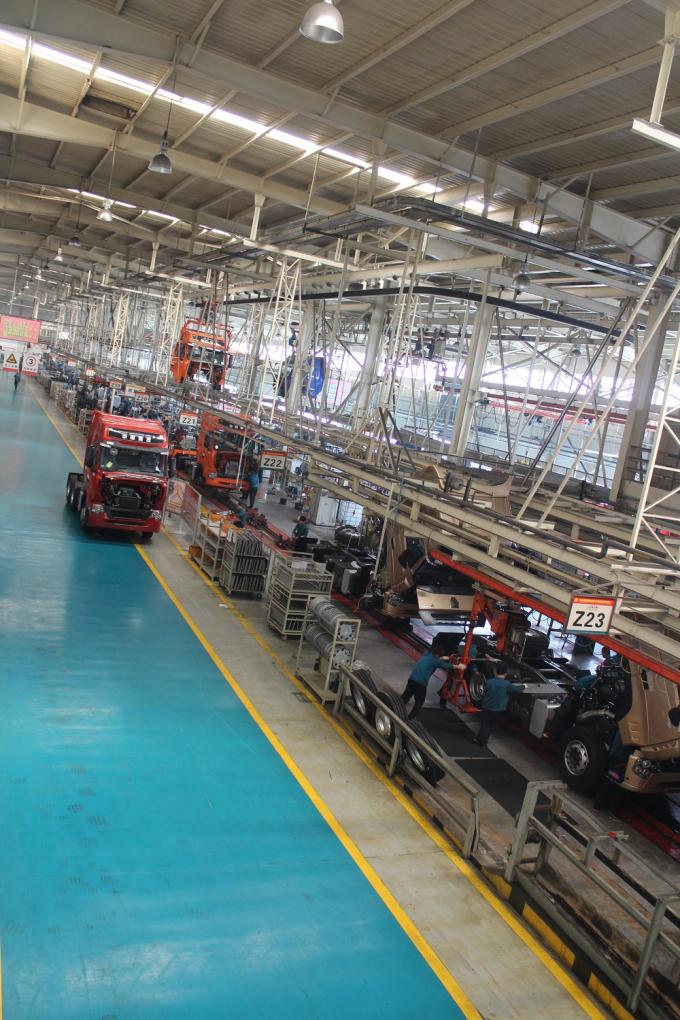

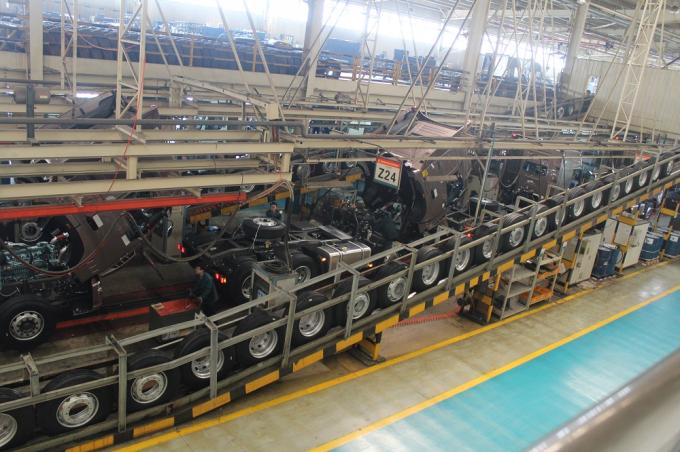

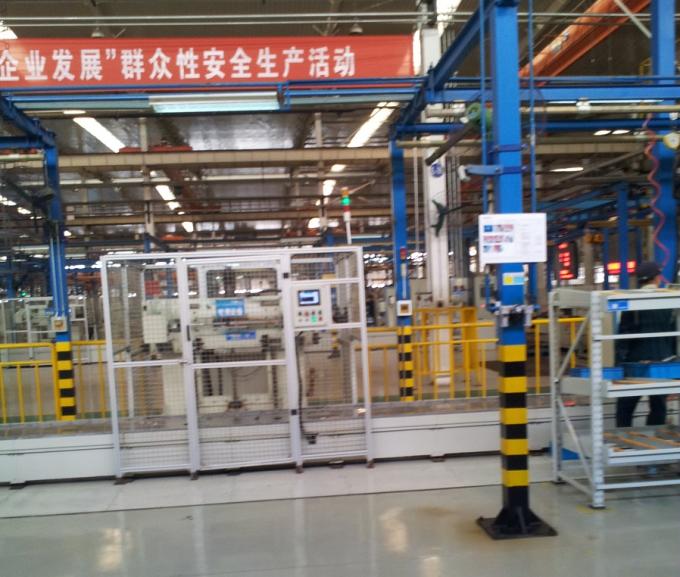

Our company's production line is located in Zhangqiu District, Jinan City, Shandong Province. The transportation is convenient.
At present, our company has more than 500 employees. Among them, there are more than 50 persons in technical R & D teams, most of them have graduate degree or above. Marketing department have more than 30 people. Has extensive sales and service experience. Provide customers with one-stop product consultation, purchase and after-sales service.
We have more than 10 years of overseas export experience. The volume of exports increases every year. Mainly exported to African countries like Ethiopia, Djibouti, Kenya, Tanzania, Sudan, Chad, Angola, Burkina Faso, Uganda, Cameroon, Zambia, Algeria, Mozambique, Botswana, etc .; South Asia, Southeast Asia, like Pakistan, Bangladesh, Myanmar, Thailand, Philippines, Laos, etc .; Latin America, like Colombia, Guyana, Peru, Chile, Uruguay, Bolivia, etc.
Professional technical team and rich experience, treat customers as friends sincerely, and provide strong support and services for customers is our common business philosophy. Customers are welcome to write or consult and cooperate.
