Heavy Road Construction Motor Grader Tractor Tractor Mounted Road Grader
XCMG 240HP GR2403 Road Construction Motor Graders equipment china tractor road wheel motor grader
GR2403 Road Construction Motor Graders
1. Energy-saving and noise-reduction: Low-speed engine transmission line is used, the specific point of the fuel consumption is low, energy saving and environmental protection; the transmission system is configured at low speed, the average fuel consumption is reduced by about 8%.
2. Powerful: Using Dongkang High-efficiency State III Variable Power Engine.
3. With load rotation: improve hydraulic system pressure, blade rotary force is greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
4. 20%Efficient operation: Increase the displacement of hydraulic pumps and hydraulic motors, and increase the speed of cylinders by 20%.
| Item | GR2403 |
| Basic parameters | Engine model | QSB6.7 |
| Rated power/speed | 178kW/2000rpm |
| Overall dimension (standard) | 8970x2625x3420 |
| Total weight (standard) | 17000 kg |
| Tire specification | 17.5-25 |
| Ground clearance (front axle) | 430mm |
| Tread | 2156mm |
| Space of front and rear axles | 6219 mm |
| Space of middle and rear wheels | 1538 mm |
| Performance parameters | Forward velocity | 5,8,11,19,23,38km/h |
| Reverse speed | 5,11,23km/h |
| Tractive effort f=0.75 | 87 kN |
| Maximum gradeability | ≥25% |
| Tire inflation pressure | 260kPa |
| Working system pressure | 20MPa |
| Transmission pressure | 1.3—1.8Mpa |
| Working parameters | Maximum steering angle of front wheel | ±48° |
| Maximum slant angle of front wheel | ±17° |
| Maximum oscillating angle of front axle | ±15° |
| Maximum oscillating angle of equilibrium box | ±15° |
| Maximum steering angle of frame | ±27° |
| Minimum turning radius | 7.3m |
| Scrape knife | Maximum lift height | 400mm |
| Maximum cutting depth | 500mm |
| Maximum tilt angle | 90° |
| Cutting angle | 28°—70° |
| Angle of revolution | 360° |
| Length & chord height | 3965x610mm |
| Oil filling amount | Coolant | 50L |
| Fuel tank | 280L |
| Engine | 24L |
| Transmission | 38L |
| Balancing box | 46L |
| Drive axle | 28L |
| Hydraulic oil | 110L |
FAQ
Which countries do you export to ?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term ?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply ?
All kinds of spare parts of XCMG, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
XCMG 240HP GR2403 motor graders equipment china rc tractor road wheel motor grader price for sale

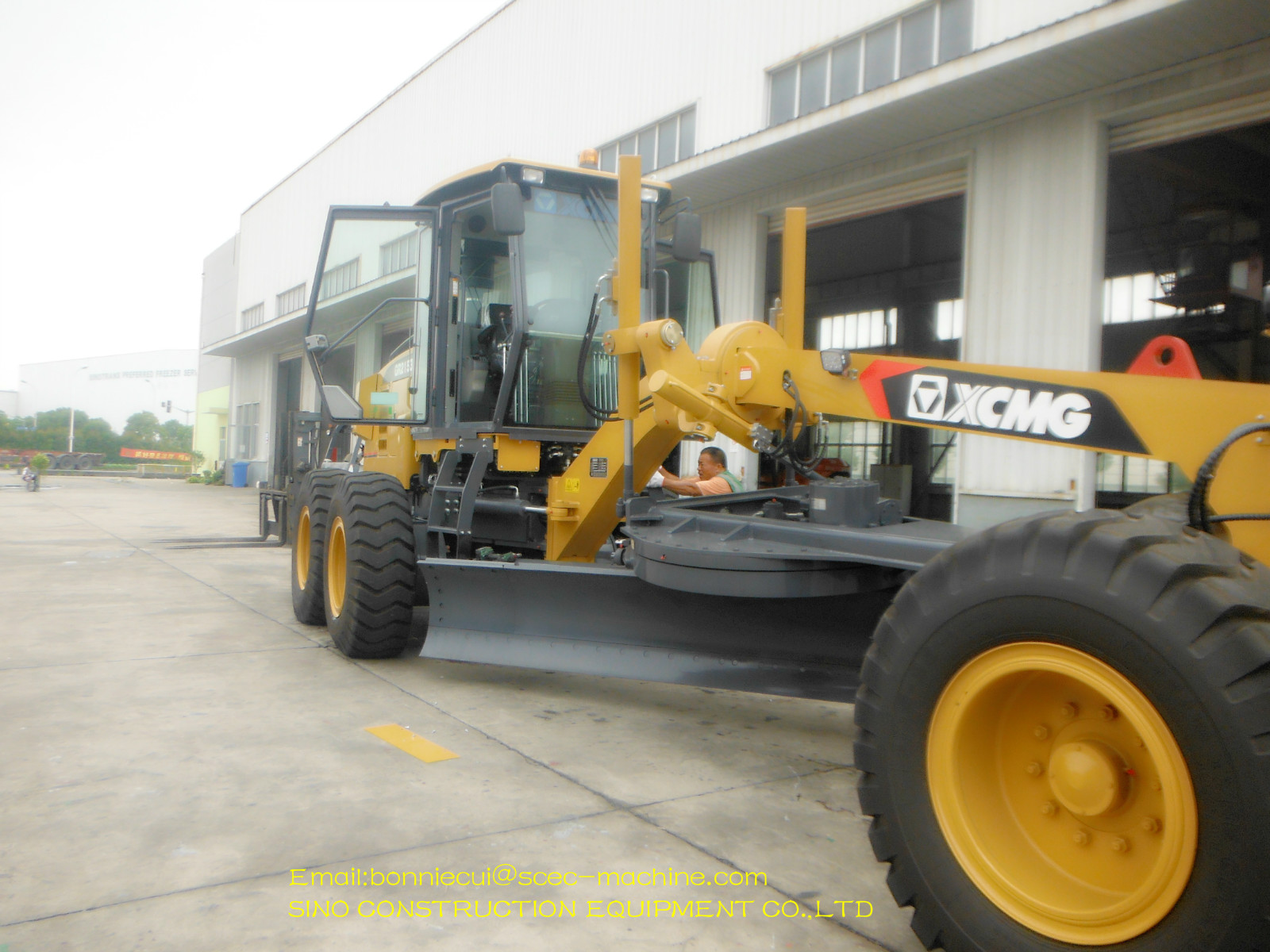

More photos for your reference
According to different brands and models, different front-end machines can be configured.
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
